BS900 Steel Plate Board 20M telescopic arm for Excavator CAT330
Zhonghe Machinery Brochure- Sophia whatsapp 181275...
Product Description-------Excavator Telescopic Boom
Revolutionize your excavating experience with the cutting-edge Three-section Telescopic Arm. Engineered with centralized lubrication, this arm guarantees smooth operation and prolonged durability. Its utilization of a robust 30mm main rope and a reliable 26mm auxiliary rope ensures efficiency and precision in every task.
Designed to be compatible with various attachments such as buckets and grabbers, this telescopic arm offers versatility and customization options to suit your specific needs. The enhanced auxiliary rope design optimizes pipeline functionality during extension, enhancing overall performance.
The incorporation of an external hose pulley further elevates the functionality of this telescopic arm. By separating the hose from the main rope, potential friction issues are mitigated, reducing failures and simplifying maintenance tasks for a seamless excavating experience.
Advantages of telescopic arms:
1.The three-section telescopic boom is made of BS900E, and Q355B, which is lighter and more durable.
2. We use 6mm thickness.
3. The slider is made of nylon and the pulley is made of steel.All hoses are centrally lubricated.
4. The external hose pulley of the bucket cylinder is more convenient for hose replacement and repair.
5. The external hose pulley separates the hose from the main rope.Avoid friction between the main rope and the hose, reduce failures.
6. The double rope design ensures the safety of the telescopic arm. Even if the main rope is broken, the arm will not stretch.
Some common size references
| Excavator (ton) | Excavator (ton) | Effective Length (mm) | Bucket Capacity (cbm) |
| 6-10 | 10000 | 7600 | 0.2-0.3 |
| 11-15 | 14000 | 10500 | 0.4-0.6 |
| 20-30 | 16000 | 12500 | 0.8-1.5 |
| 30-35 | 20000 | 15500 | 1.3-1.66 |
| 30-35 | 25000 | 20500 | 1-1.4 |
| 40-45 | 25000 | 20500 | 1.8-2.5 |
| 40-45 | 30000 | 24100 | 1.4-2 |
Configuration includes: Clamshell bucket 1pc , 2pcs Pin, Bidirectional foot switch 1pc
Our designs enable the versatile use of both digging and grab buckets.
The first option is the clamshell bucket, which is commonly used for deep excavation projects like subway construction.
Next, we have the grab bucket, which, in contrast to the clamshell bucket, is more powerful and capable of grasping materials like stone.
Finally, there’s the standard bucket, specifically designed for use with telescopic booms, requiring custom design modifications.

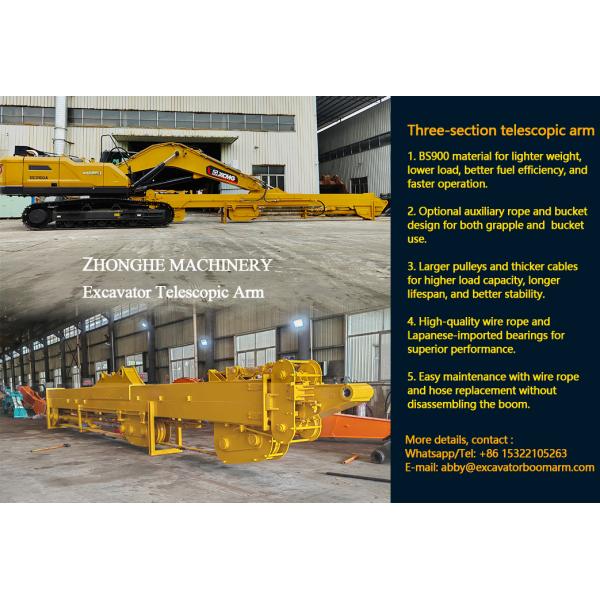

Some pictures of excavator telescopic arm
Kaiping Zhonghe Machinery Manufacturing Co., Ltd Nestled in Kaiping City, Guangdong, Kaiping Zhonghe Machinery Manufacturing Co., Ltd. is a powerhouse in the realm of excavator accessories. Specializing in excavator extension arms, demolition arms, standard arms, excavating buckets, and wood grabbers, our company boasts a robust presence in both domestic and international markets, showcasing exceptional comprehensive strengths.
Our proficient team is adept at designing, producing, and revamping extension arms for various excavator brands, encompassing both extension arms and extension bars. With state-of-the-art computer-aided design systems, advanced processing machinery, and skilled operators, we ensure each product meets stringent quality benchmarks. From stress analysis to material selection, our meticulous approach guarantees stability in product quality. Let us craft a tailored solution to meet your unique requirements precisely.
FAQ
1. Do you offer warranties on your Telescopic Booms?
Yes, we provide a warranty on all our Excavator Telescopic Booms. The warranty covers manufacturing defects and ensures that you receive a product free of any defects. Please contact us for specific warranty details.
2. Can I install the Telescopic Boom myself, or do I need professional assistance?
While the Telescopic Boom is designed to be easily installed on most excavators, we recommend professional installation to ensure safety and optimal performance. Our team can assist with installation if needed.
3. Do you offer after-sales support for your Telescopic Booms?
Yes, we provide comprehensive after-sales support, including troubleshooting, maintenance tips, and replacement parts. Our goal is to ensure your Excavator Telescopic Boom continues to perform efficiently throughout its lifespan.
4. What is the price range for an Excavator Telescopic Boom?
The price for a Telescopic Boom depends on factors such as the size, customizations, and your specific excavator model. Please contact us for a tailored quote based on your requirements.
